PHILCO (FORD) WA952 YEAR 1966.

The machine PHILCO (FORD)  WA952  describes a front loading washing machine, with a rotary drum, comprising a chassis that supports a cylindrical washing tub inside which there is mounted a rotary inox steel drum with a horizontal axis. The washing tub intended to contain a liquid soap, and a drum with perforated walls for containing the clothes to be washed, and which is rotationally mounted inside the washing tub and driven by an electric motor to rotate in both directions with respect to an axis that is substantially horizontal or slightly tilted with respect to a horizontal direction. Generally, this type of machine can rotate the drum at a fast speed in order to drain the clothes contained inside by spinning them.








 Furthermore  it has a CLOTHES DEFLECTING DOOR In an effort to reduce entanglement of clothes with this flexible sleeve it is usual to construct the door, and particularly its window portion, in inwardly projecting form, substantially filling the inside of the flexible sleeve except for some small clearance to allow relative movement of the sleeve and door.

The tub is attached to the chassis by springs or dampers and linking rods provided with shock absorbres od idraulic type.
The chassis structure frame is made up of resistant elements including metallic plate elements shaped by cutting and folding, assembled and joined together by screw or deformation attachment devices, or by welding. The machine is an example of a chassis holding parts structure instead of a normal steel sheet cube chassis of the self holding type like many other machines.

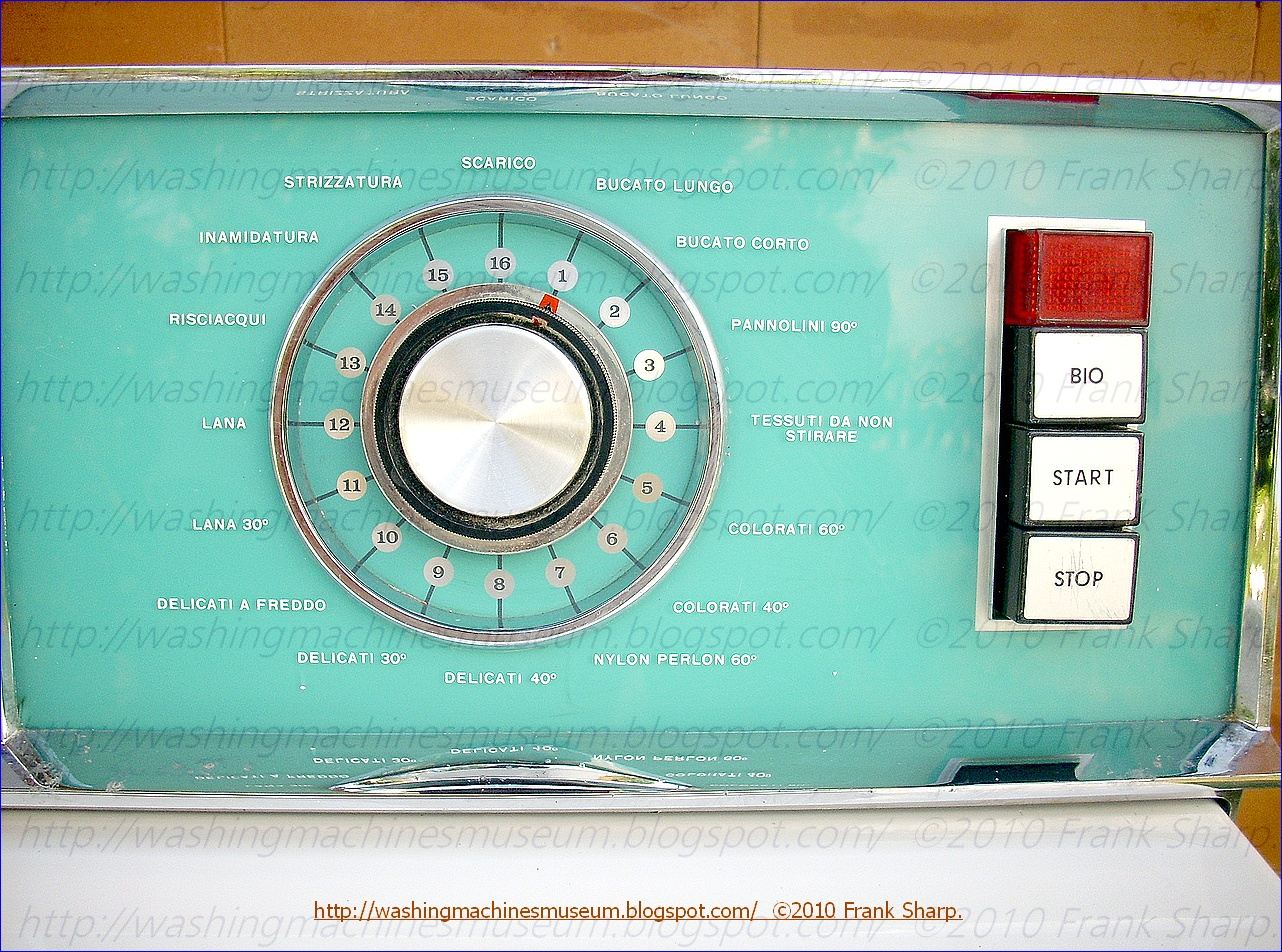

The PHILCO (FORD)  WA952  washing machine  includes a cabinet , a control panel assembly  disposed at an upper portion of a front side of the cabinet , and a knob assembly  rotatably mounted on the control panel assembly to set a washing cycle.The time or device is a HOLZER MTA (Invented by Walter Holzer) and is developed in such a way that it is possible to switch the program contacts exactly in a preselected sequence, according to a preselected program. It is also possible to have the selection of further program sections take place easily, eg. by pressing buttons or rotate selectors. The primary feature of this  invention is to be seen in providing a pulse device which assigns various periods of times to various program sec
tions of a program "control system ". It is a further object of this invention, to provide shortvand long switching times in a program cycle. A further object of this invention is to change the program without altering the control itself, by changing the pulse duration or pulse times. It is also made possible to change whole sections of the control program by a corresponding pre-selection. The system therefore brings to a virtually infinite number of combination of programming sequences even by user choice time by time.

To see the Internal and Technical View CLICK HERE or on older post button at the end of this post.

Philco, the Philadelphia Storage Battery Company (formerly known as the Spencer Company and later the Helios Electric Company), was a pioneer in early battery, radio, and television production as well as former employer of Philo Farnsworth, inventor of cathode ray tube television. It is currently a brand of Philips.

Philco's rise to the top of radio makers was an amazing feat. While other makers like Atwater-Kent, Zenith Electronics, RCA, and many now-forgotten others (Freshman Masterpiece, FADA Radio, AH Grebe, etc.) sold many battery-powered radios in the early 1920s, Philco made only batteries, "socket power" units, and battery chargers. With the invention of the rectifier tube, which allowed radios to be operated from the wall socket, Philco knew their business was doomed, and decided in 1926 to get into the booming radio business. By 1930 they would sell more radios than any other maker and hold that first place position for over 20 years.

Philco built many iconic radios and TV sets, including the classic cathedral-shaped wooden radio of the 1930s (aka the "Baby Grand"), and the very futuristic (in a 1950s sort of way) Predicta series of television receivers.

Philco started experimenting with television in the early 30s and financed for a while the experiments of Philo T. Farnsworth, considered by many as the “father of television.”An experimental TV station was licensed to Philco in 1931, one of the first all-electronic television ;

Granting of such experimental broadcasts by the FCC was common practice at that time, as television took its first tentative steps in New York City, Schenectady, and Philadelphia. While the rest of the country remained oblivious to the new medium, viewers in those cities bought several thousand sets to watch the limited schedule of programs transmitted by pioneering broadcasters of the East Coast who jumped at the opportunity to go from experimental to commercial television broadcasting.

By 1937, Philco was using an experimental 441-line television system which utilized a 12” television receiver—a direct, but bulky competitor to David Sarnoff’s RCA 12” set.

Along with the stations that would become WNBC-TV and WCBS-TV in New York City and WRGB-TV in Schenectady, WPTZ-TV, Philco Corporation's station in Philadelphia, gravitated to sports to fill air time.

On October 5, 1940, when there were about 700 sets scattered throughout the Philadelphia area, Philco broadcast the University of Pennsylvania's Quakers 51-0 victory over the University of Maryland at Franklin Field.

Today, the Philco brand name is carried by several different companies and holding groups throughout the world.

Philco International

In 1974, 13 years after purchasing the Philco Corporation, Ford begins divesting part of the Philco business by selling the Consumer Electronics Division to GTE Sylvania. Three years later, Philco International is purchased by White Consolidated Industries (WCI). In 1986, Philco and WCI are purchased by AB Electrolux of Sweden. And, in 1988, Philco finally moves out of Philadelphia to Pittsburgh, to join other WCI affiliates.

Itautec-Philco S.A.

In 1989, Philco-Brasil is bought by the group Itaúsa, part of Bank Itaú. Most of its plants are centered around three plants in Manaus for the manufacture of TV sets, video cassettes, fax machines, printers, and PC boards.

Philco-Argentina

It is owned by Jorge Blanco Villegas and has a plant in Ushuaia, Tierra del Fuego. It manufactures mostly Semi Knock Down (SKD) type components, i.e., fabrication of pre-assembled PC boards and components. The German company VDO imported Philco-Argentina auto radios into Brazil for a while¾but with little success.

Philco-Italia S.P.A.

During the 70s, Philco-Italia became part of Bosch-Siemens and was subsequently acquired in 1987 by the Gruppo Merloni with Felice Colombo as president. It currently manufactures refrigerators and air conditioners in northern Italy having distributors in all 5 continents, Philco G.B. Ltd. in England, Philco Trading in Egypt, Bendix Unit B1 in Australia, among others.
